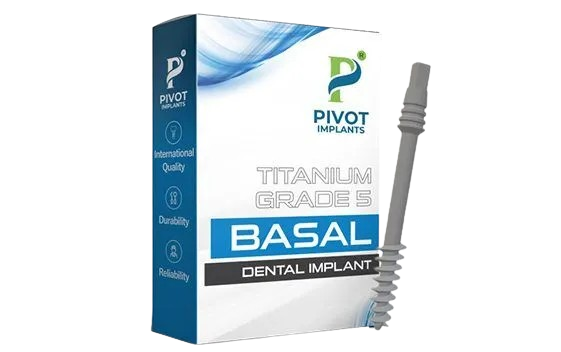

basal implant
Revolutionizing Implantology in Atrophic Jaws
Immediate Loading. Minimal Bone Requirement. Maximum Success.
The Basal Implant by Pivot Implants is a cutting-edge solution specifically designed for severely resorbed jaws and cases where traditional implants are not feasible. Anchored in the cortical bone, this implant enables immediate functional loading without the need for bone grafting—making it a life-changing option for high-risk or compromised patients.
Key Features:
- Monobloc Design: Single-piece construction ensures mechanical strength, eliminating microgaps and reducing the risk of peri-implantitis.
- Aggressive Thread Design: Facilitates high primary stability, making it ideal for immediate loading protocols—even in soft bone conditions.
- Flapless Placement: Minimally invasive protocol results in faster recovery and less patient discomfort.
- Bendable Neck: Offers intraoperative flexibility to adjust angulation for optimal prosthetic alignment.
- Highly Polishable Neck: Minimizes bacterial colonization and supports long-term soft tissue health.
| Parameter | Specification |
|---|---|
| Material | Titanium Grade 5 (Ti-6Al-4V, ISO 5832-3) |
| Design | Single-piece implant with bendable abutment |
| Surface | Mirror-polished neck, body with smooth or textured finish |
| Diameter Range | Ø2.5 mm to Ø4.0 mm |
| Length Range | 10 mm to 18 mm |
| Connection | Monobloc (no separate abutment) |
Clinical Indications
- Atrophic ridges (maxilla and mandible)
- Patients with compromised bone quality
- Medically compromised patients
- Immediate fixed prosthesis in edentulous cases
- Graftless implant solutions
Clinical Advantages:
- No sinus lifts or bone grafting required
- Shorter surgical time and faster prosthetic workflow
- Immediate loading within 72 hours
- High success rates even in diabetic and geriatric patients
- Reduced post-operative complications
